9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18
173 - 9826 LIFT STRAPS

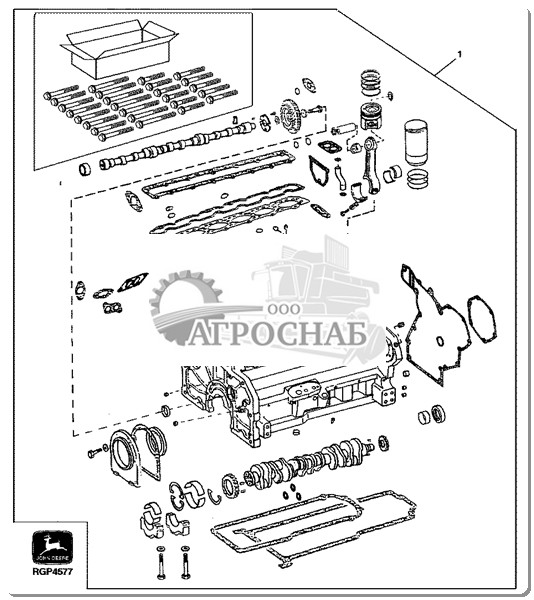

9901 SHORT BLOCK ASSEMBLY
![]()
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | RE506661 | Short Block Assembly | 1 | (PISTON MARKED RE70689) (ALSO ORDER R503983 DIPSTICK TUBE) | |||
| RE506661 | Short Block Assembly | 1 | - | 233485 | |||
| RE521139 | Short Block Assembly | 1 | 233486 | - | |||
| .. | SE501041 | Complete Block Assy Reman | 1 |

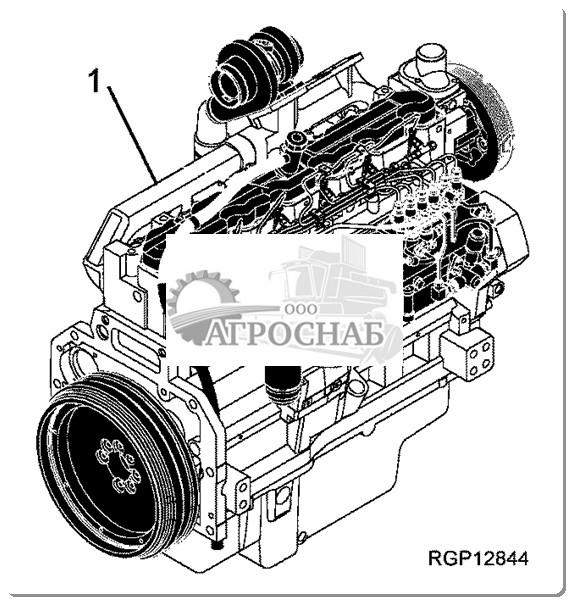

REPLACEMENT ENGINE
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 1 | SE501706 | Diesel Engine Reman | 1 | 233486 | - |

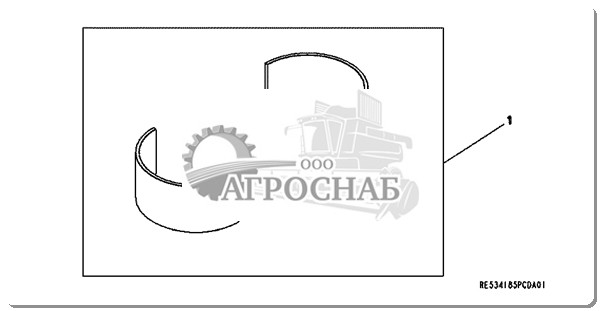

9901 CONNECTING ROD BEARINGS, UNDERSIZED
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE534185 | Bearing | 1 | 0.292MM US |
16DF FUEL INJECTION PUMP
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
|---|---|---|---|---|---|---|---|
| 41 | 19M7783 | Screw | 3 | M10 X 16 | |||
| 42 | R504089 | Gear | 1 | ||||
| 43 | RE522834 | Valve | 1 | ||||
| 44 | R63548 | O-Ring | 2 | ||||
| 45 | R519759 | O-Ring | 1 | ||||
| 46 | RE504156 | Oil Line | 1 | ||||
| 47 | R67264 | Packing | 2 | ||||
| 48 | 14H1090 | Nut | 3 | 3/8" | |||
| 49 | 24M7239 | Washer | 3 | 10.700 X 21 X 2.500 mm | |||
| 50 | R76822 | Fitting | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 51 | RE503059 | Adapter Fitting | 1 | ||||
| 52 | 24H1652 | Washer | 1 | 13/32" X 11/16" X 7/64" | |||
| 53 | 19H3124 | Screw | 1 | 3/8" X 1-1/2" | |||
| 54 | RE508670 | Check Valve | 1 | - | 232462 | ||
| RE520978 | Check Valve | 1 | 232463 | - | |||
| 55 | R63548 | O-Ring | 1 | ||||
| 56 | 51M7095 | O-Ring | 1 | 11.300 X 2.200 mm | |||
| 57 | RE503058 | Adapter Fitting | 2 | - | 232462 | ||
| RE522616 | Fitting | 2 | 232463 | - | |||
| 58 | R63548 | O-Ring | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| 59 | 38H5002 | Adapter Fitting | 1 | ||||
| 60 | 51M7095 | O-Ring | 2 | 11.300 X 2.200 mm | |||
| 61 | RE518423 | Fuel Injection Pump | 1 | - | 232462 | ||
| RE521422 | Fuel Injection Pump | 1 | 232463 | - | |||
| SE501918 | Fuel Injection Pump Reman | 1 | - | 232462 | |||
| SE501920 | Fuel Injection Pump Reman | 1 | 232463 | - | |||
| 62 | RE515638 | Hand Primer | 1 | ||||
| 63 | R515456 | Washer | 1 | ||||
| 64 | R515457 | O-Ring | 1 | ||||
| 65 | RE508773 | Engine Controller | 1 | - | 217748 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | ||
| RE522515 | Engine Controller | 1 | 217749 | - |
2101, 2105 THERMOSTAT COVER
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AH89557 | Clip | 1 | |||
| 2 | R63845 | Washer | 1 | |||
| 3 | 19H3772 | Screw | 1 | 3/8" X 1-3/4" | ||
| 4 | 19H3683 | Screw | 2 | 3/8" X 1-1/2" | ||
| 5 | R86007 | Cover | 1 | |||
| 6 | R124607 | Gasket | 1 |
1902, 1944 OIL PAN
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R521228 | Gasket | 1 | (SUB FOR RE504822) | ||
| 2 | 19M9399 | Cap Screw | 3 | M10 X 60 | ||
| 3 | RE520585 | Oil Pump Intake | 1 | |||
| 4 | R100569 | Gasket | 1 | |||
| 5 | RE506165 | Oil Pan | 1 | (ORDER RE506166) | ||
| RE506166 | Oil Pan | 1 | (MARKED R500354 OR R500355) | |||
| 6 | 15H690 | Pipe Plug | 1 | 3/4" | ||
| 7 | R27474 | Drain Plug | 1 | |||
| 8 | R47151 | O-Ring | 1 | |||
| 9 | RE509097 | Drain Valve | 1 | 7/8" | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | 24M7239 | Washer | 22 | 10.700 X 21 X 2.500 mm | ||
| 11 | 19H3485 | Cap Screw | 4 | 3/8" X 2" | ||
| 12 | R135895 | Washer | 2 | |||
| 13 | 19H2473 | Cap Screw | 2 | 1/2" X 1-3/4" | ||
| 14 | 19H1651 | Cap Screw | 18 | 3/8" X 1-1/2" (ORDER 19H2633) | ||
| 19H2633 | Cap Screw | 18 | 3/8" X 1-1/2" |
4302 STARTING AID
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | ...... | Intake Manifold | 1 | |||
| 2 | R28583 | Nozzle | 1 | |||
| 3 | R47160 | Nozzle Holder | 1 | |||
| 4 | RE21790 | Elbow Fitting | 1 |
7699 Pipe Plug Oil Pressure Switch
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE71255 | Pipe Plug | 1 |
